Refrigerated Shipping Container
// Cold Storage · Reefer Containers

Refrigerated Shipping Container

A reefer is a fully insulated shipping container with an integrated refrigeration unit — drop power, set a temperature, and you have a freezer or cooler anywhere on your site. Used in food distribution, floral, pharma, catering, and ag cold chain.

Floor area
~300 sq ft (40ft) · ~150 sq ft (20ft)
Payload
~60,000 lbs
Lifespan
−20°F to +70°F · 10–15 yrs
Reefer machinery · front-mounted unit
Reefer machinery · front-mounted unit

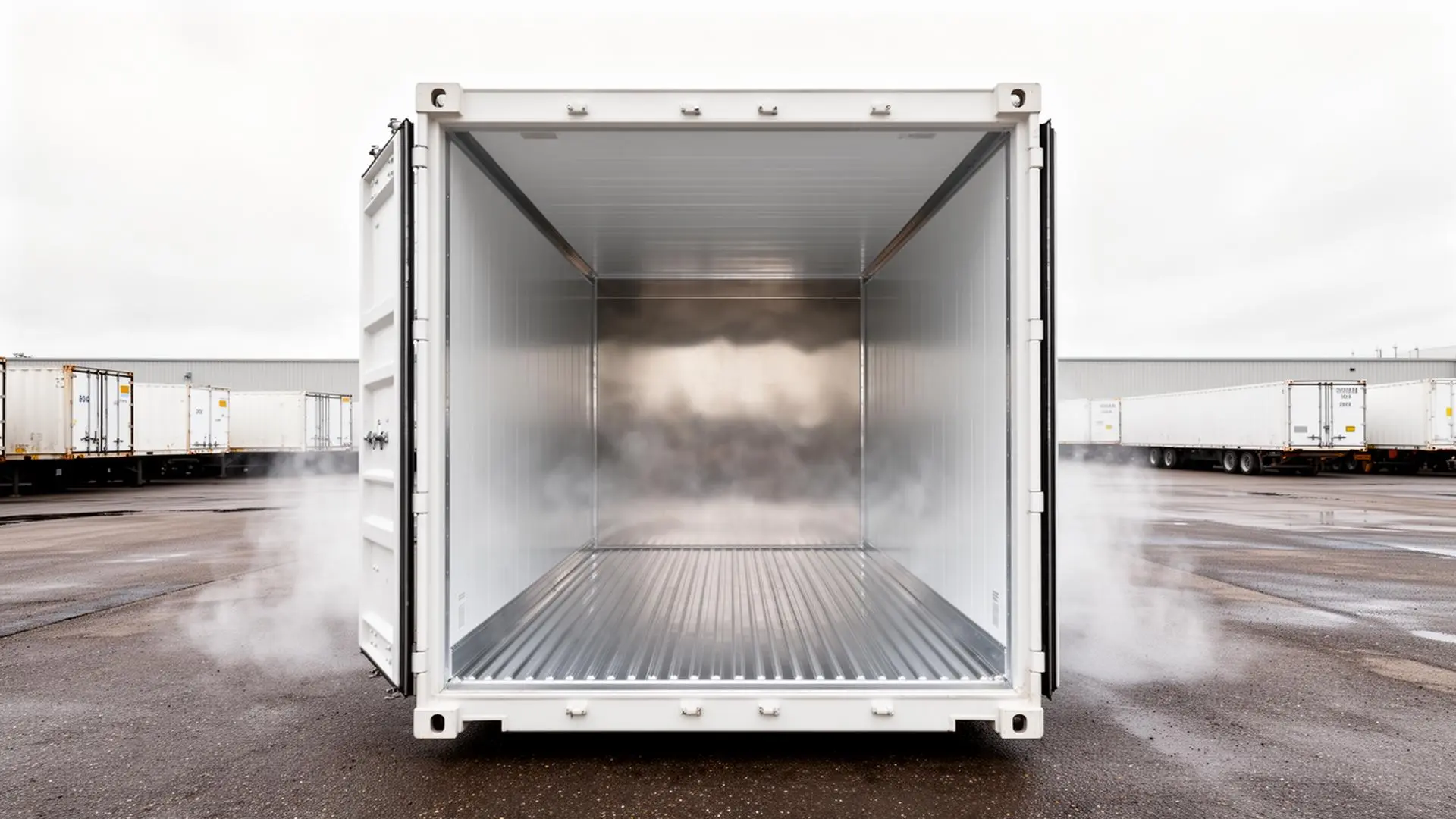

Doors open · T-bar floor
Doors open · T-bar floor

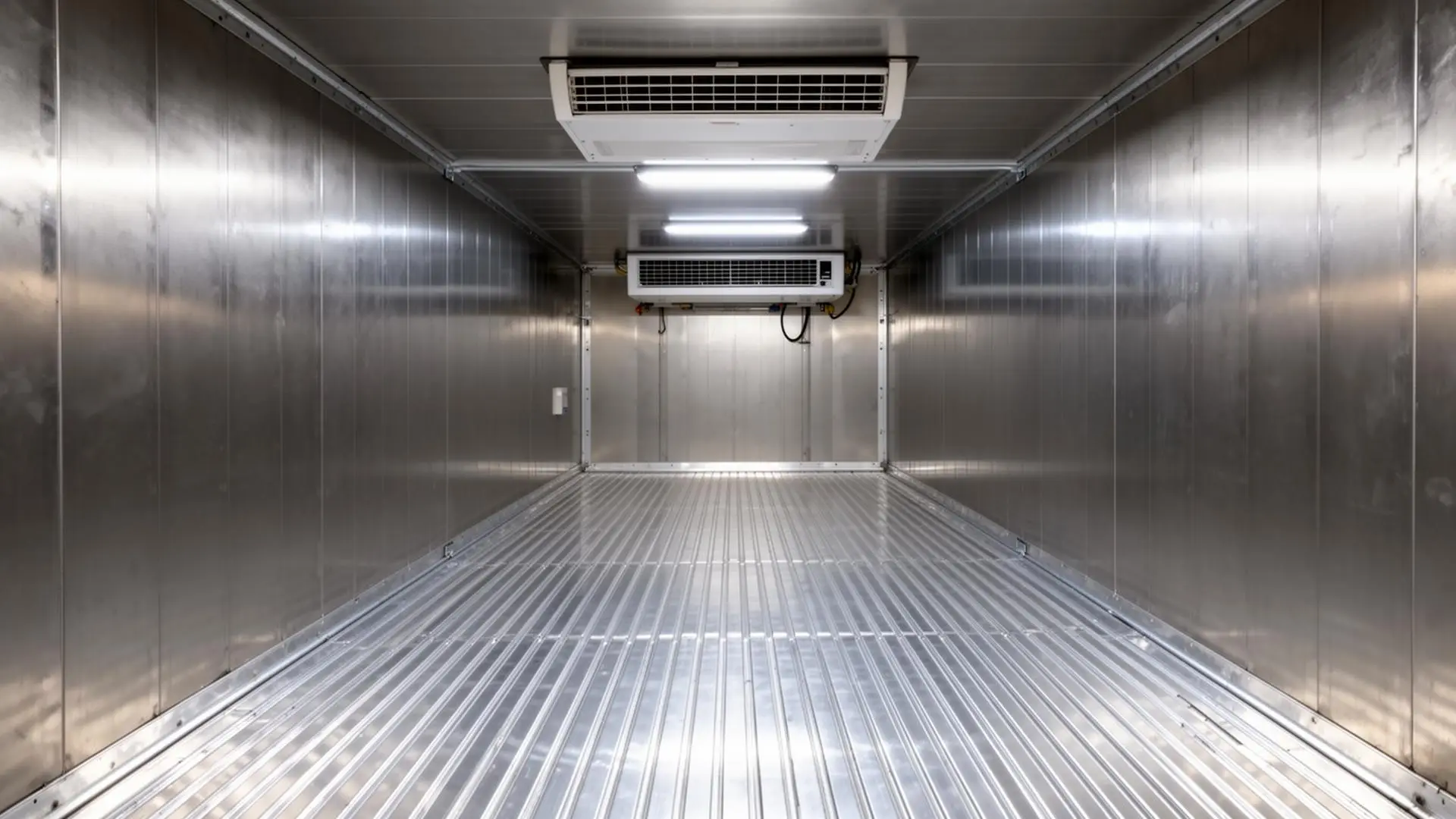

Stainless interior · evaporator vents
Stainless interior · evaporator vents
Digital controller · power inlet
Digital controller · power inlet
// DIMENSIONS

Know the box before it arrives

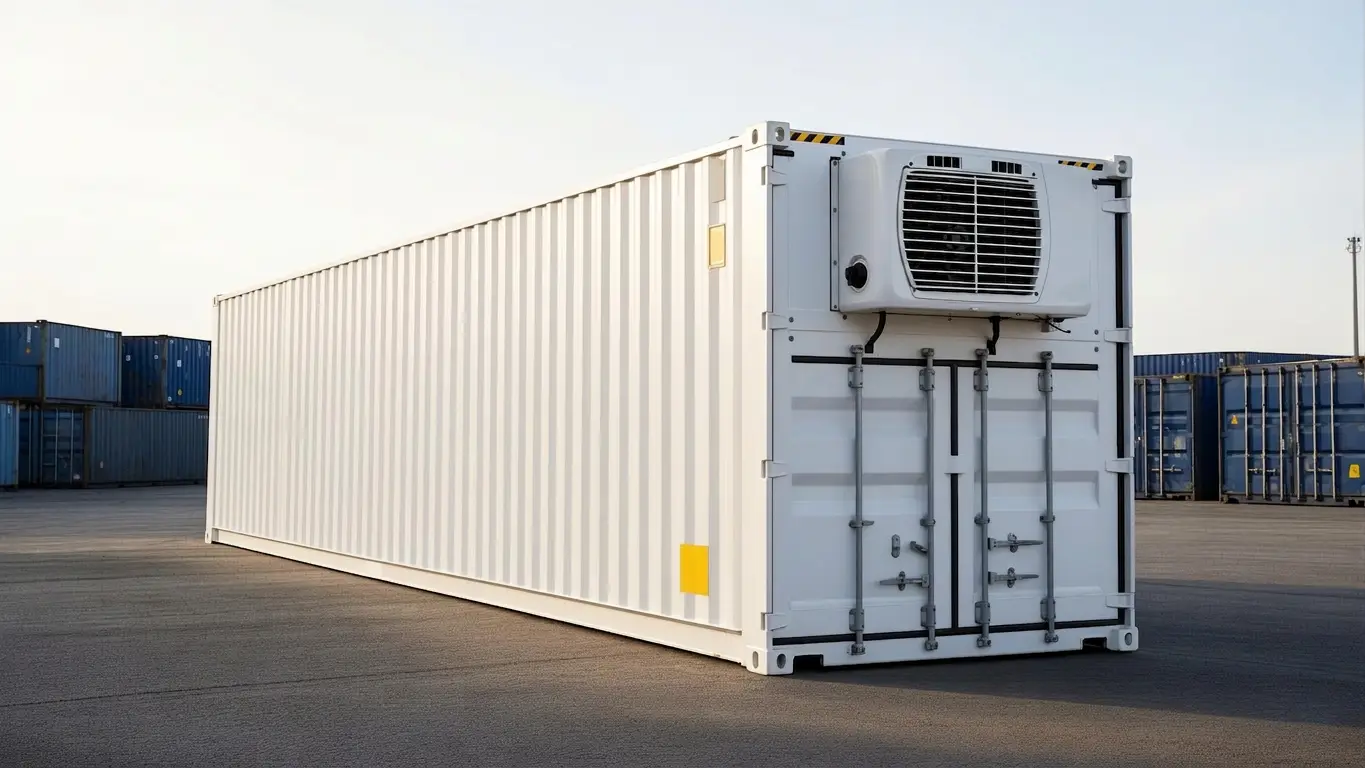

20ft Reefer · ~150 sq ft usable real photo
20ft Reefer · ~150 sq ft usable dimensions

20ft Reefer · ~150 sq ft usable

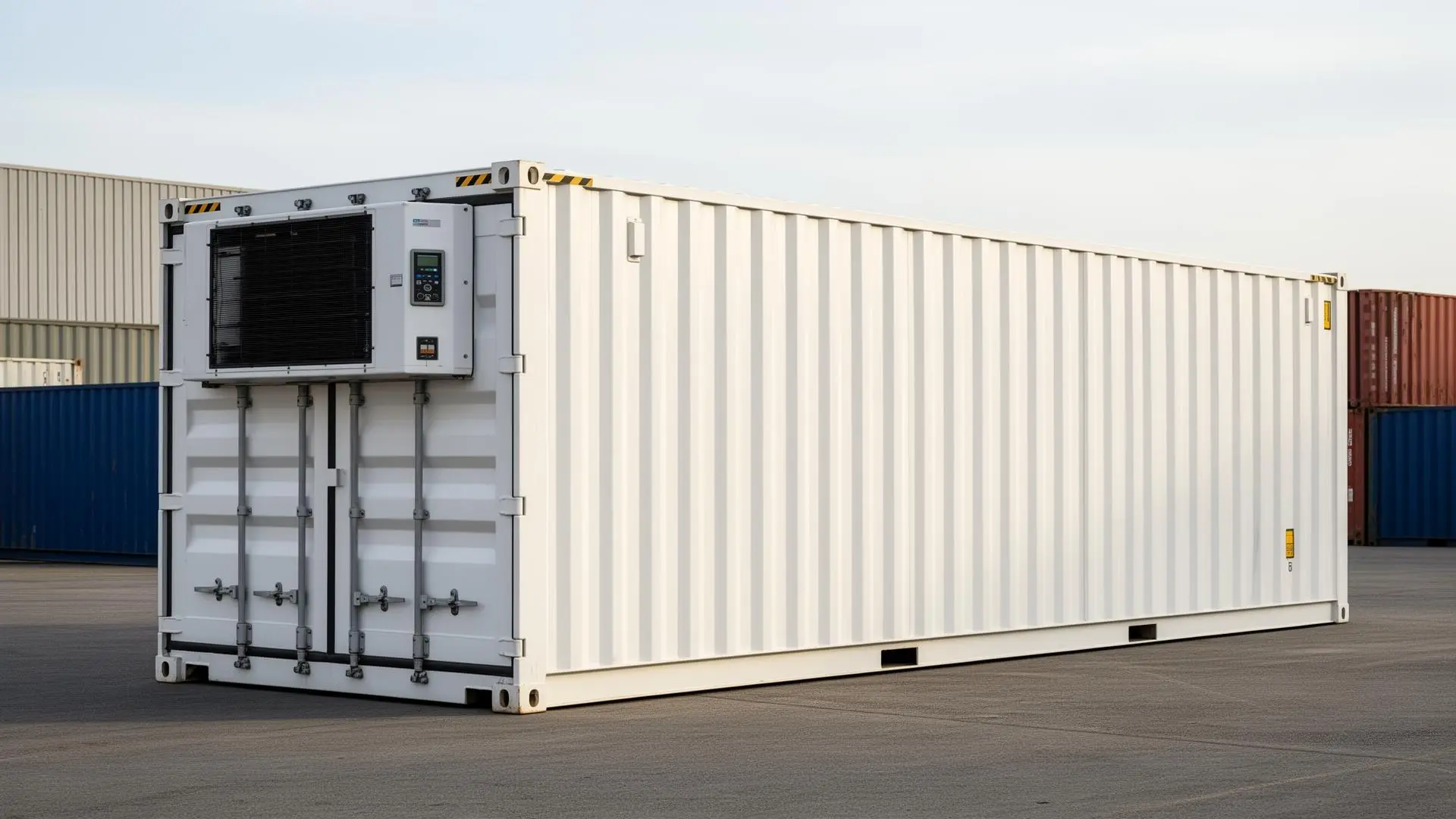

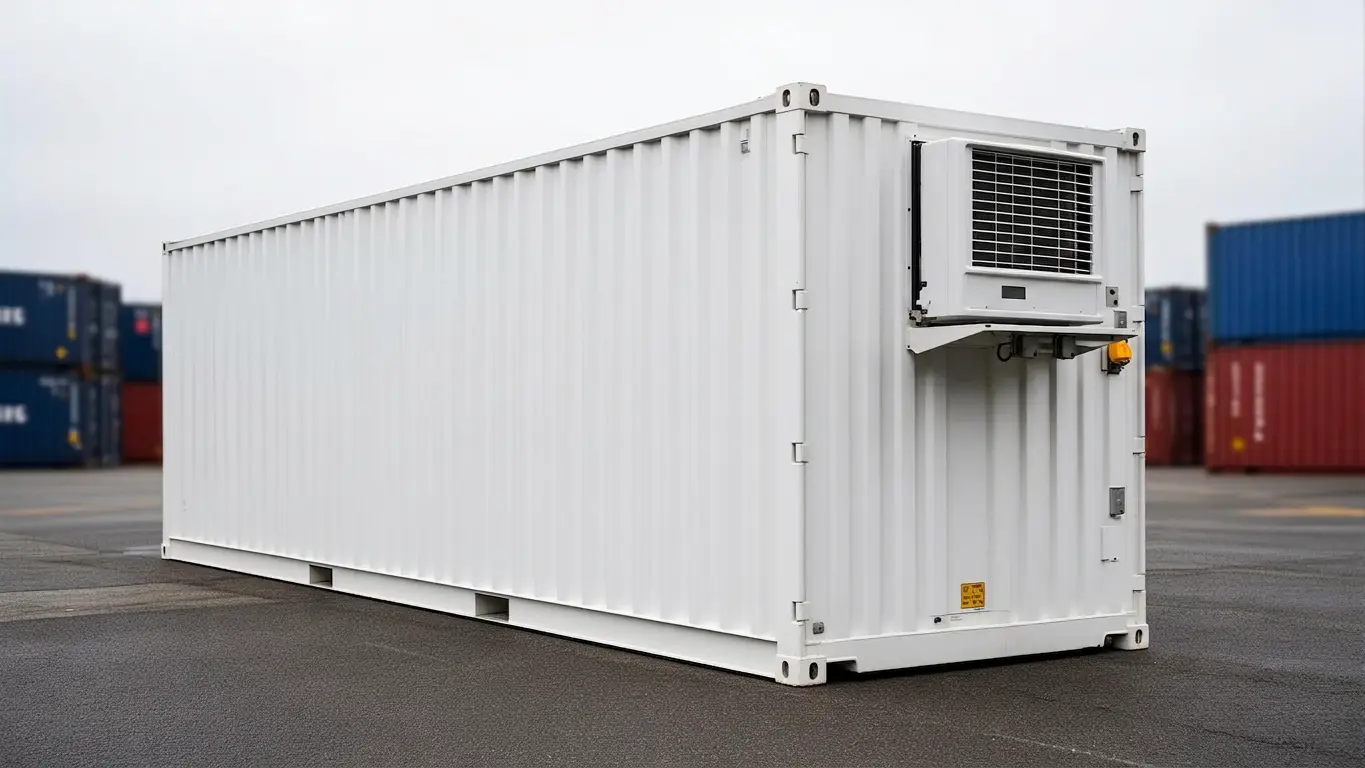

40ft Reefer · ~300 sq ft usable real photo
40ft Reefer · ~300 sq ft usable dimensions

40ft Reefer · ~300 sq ft usable

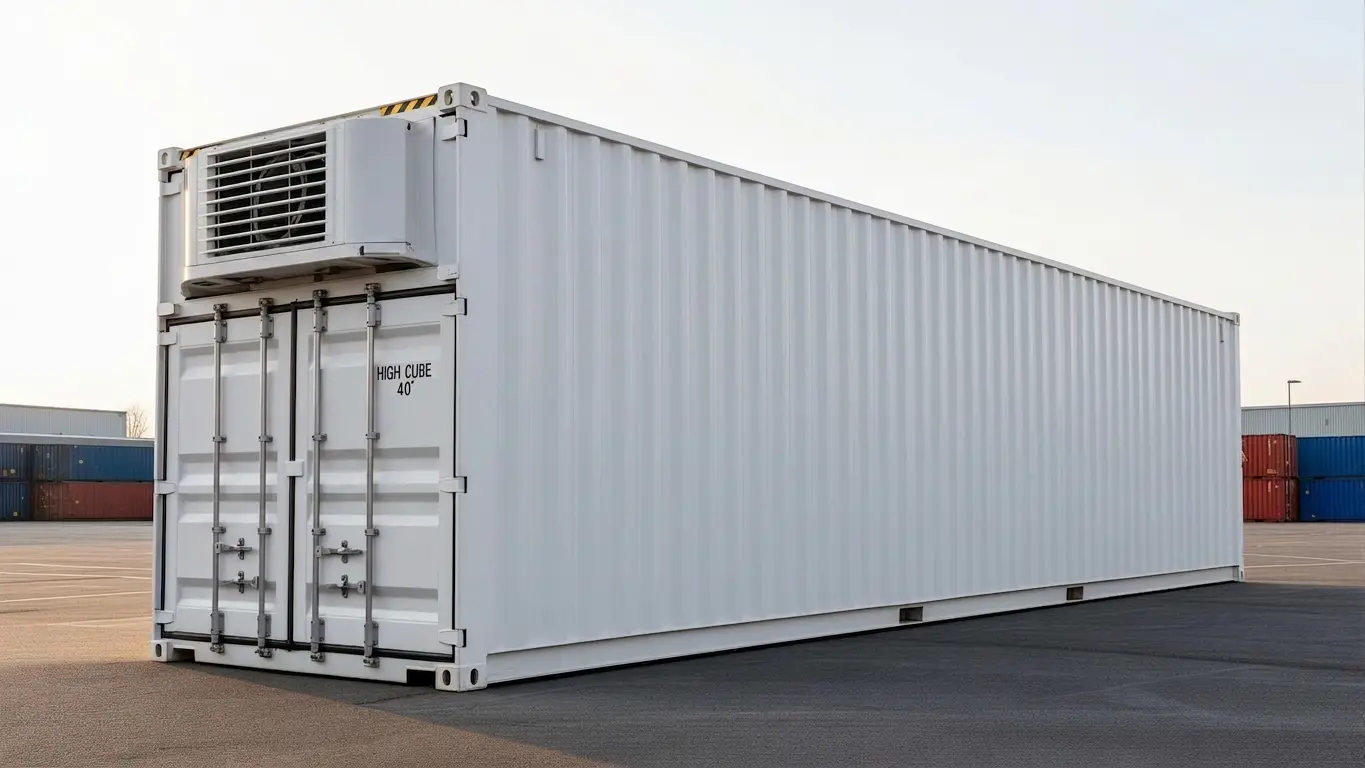

40ft HC Reefer · taller payload real photo
40ft HC Reefer · taller payload dimensions

40ft HC Reefer · taller payload

External (L×W×H)
40' L × 8' W × 9'6" H (HC)
Internal (L×W×H)
37'0" × 7'6" × 8'5"
Door opening (W×H)
7'6" × 8'2"
Floor area
~300 sq ft (40ft) · ~150 sq ft (20ft)
Internal volume
~2,350 cu ft (40HC)
Max payload
~60,000 lbs
Tare weight
8,500 – 10,800 lbs
Service lifespan
−20°F to +70°F · 10–15 yrs

External

40' L × 8' W × 9'6" H (HC)

Internal

37'0" × 7'6" × 8'5"

Door opening

7'6" × 8'2"

Volume

~2,350 cu ft (40HC)

Payload

~60,000 lbs

Tare weight

8,500 – 10,800 lbs

// AVAILABLE NOW

Live inventory

No live inventory in this category right now — request a quote and a specialist will source one from a depot near you.

Request Quote
// SYSTEM

Refrigeration system specs

Temperature range
−20°F to +70°F (−40°F on select Thermo King units)
Refrigerant
R-134a / R-404A (varies by unit)
Insulation
3" closed-cell polyurethane foam on walls, ceiling, floor
Floor
Aluminum T-bar — airflow under cargo, food-grade
Power requirement
460V 3-phase, 25–30A typical
230V option
Dual-voltage step-up converter available
Generator compatible
Yes — sized 20–30 kW per unit
Control system
Digital set-point controller with heat + cool modes
Defrost
Automatic timed defrost cycle
Door seals
Heavy-duty weatherproof gaskets, locking cam rods
Brands stocked
Carrier · Thermo King · Daikin
Warranty
5-yr structural shell · 6-mo refrigeration machinery
// DEEP DIVE

What's actually inside the box

How a reefer actually works

Unlike an insulated dry box, a reefer runs a closed-loop refrigeration cycle — compressor, condenser, evaporator — driven by a digital controller. Set your target temperature once; the unit cycles between cool, defrost, and (when needed) heat to hold it within a tight band, indoors or outdoors, summer or winter.

  • Holds set point regardless of ambient temperature
  • Cools and heats — protects against freeze and over-temp
  • Continuous-duty rated — these are over-the-road cold chain units

Pre-trip inspection (PTI) before ship

Every reefer that leaves our depot passes a full PTI: hour-meter logged, structural shell cargo-worthy, refrigeration system run through a pull-down to set point, alarm history cleared, gaskets and seals verified, and interior photographed.

  • Pull-down test to −20°F documented
  • All active alarms resolved before dispatch
  • Machinery hours disclosed up front
  • Depot inspection certificate included with delivery

Power & site requirements

Standard reefers need 460V 3-phase power — the same shore power a depot or container yard uses. No 3-phase on site? You have two options: a dual-voltage step-up converter that runs the unit off 230V, or a properly sized diesel/propane generator. We'll size and quote either.

  • Container plug: 30A locking, 480V 3-phase (BRY430P7W)
  • Generator sizing: ~20–30 kW per unit running, more for start-up surge
  • 230V dual-voltage converter add-on available
  • No neutral wire required — WYE 3-phase only

Brands we stock

We source from the three brands that dominate marine cold chain. Each performs the same job; selection is mostly about parts availability and how cold you actually need to go.

  • Carrier — broadest parts network, −20°F to +70°F
  • Thermo King — deepest cold, −40°F to +70°F on select models
  • Daikin — efficient, quieter operation, −20°F to +70°F

Warranty & service

We back every reefer with a 5-year limited structural warranty on the container shell and a 6-month limited warranty on the refrigeration machinery — compressor, condenser, evaporator, control board. Routine service and consumables (gaskets, bulbs) are excluded. Extended service plans available on request.

  • 5-year shell · 6-month machinery, in writing
  • Service support through CoreBox or authorized partners
  • Optional extended-service plans available

Insulation, floor, and door hardware

The cold envelope is what holds your set point. Walls, ceiling, and floor are all sealed with 3 inches of closed-cell polyurethane foam. The floor is aluminum T-bar — grooved so cold air circulates under the cargo. Cargo doors close with multi-point cam locking rods and heavy gaskets, the same hardware rated for ocean voyage.

  • 3" closed-cell foam on all six surfaces
  • Aluminum T-bar floor — airflow under pallets
  • Multi-point cam-lock cargo doors with marine gaskets
  • Compatible with standard cargo-door padlock guards
// COMPARE

Sizes & configurations

20ft Reefer

20ft Reefer

Compact cold storage.

  • ~150 sq ft usable
  • Driveway-friendly footprint
  • Same machinery as 40ft

Entry

Learn more
40ft Reefer

40ft Reefer

Workhorse cold box.

  • ~300 sq ft usable
  • Best $/cu ft
  • Holds −20°F reliably

Best value

Learn more
40ft HC Reefer

40ft HC Reefer

Extra vertical capacity.

  • Tall pallet stacks fit
  • Same footprint as 40ft
  • Premium insulation pack

Premium

Learn more
// WHAT YOU GET

Inspected and certified before it ships

Every unit is walked, photographed, and signed off at the depot before it's loaded onto the truck. No surprises on delivery day.

Depot inspection certificate included
  • PTI pass — pull-down to −20°F verified
  • Cargo-worthy structural inspection
  • Carrier / Thermo King / Daikin unit, brand disclosed
  • Machinery hour-meter recorded and shared
  • Stainless interior, T-bar aluminum floor sound
  • Door gaskets and curtain seals intact
  • Evaporator and condenser coils clean
  • Control board boots cleanly · no active alarms
  • Power inlet and cabling tested
  • Interior + exterior photographed before ship
Tilt-bed shipping container delivery
// DELIVERY

Tilt-bed delivery, no crane needed

01

Order

02

Dispatch

03

On-site

  • Tilt-bed truck: ~125 ft straight clearance, 12 ft wide, 16 ft overhead
  • Flatbed (forklift unload): 65 ft straight, 12 ft wide, 14 ft overhead, 15,000 lb fork required
  • Lead time: typically 5–10 business days nationwide
  • Generator add-on can ship with the unit on request
  • Ground should be level and dry — notify us of mud or soft ground
// FAQ

Common questions

Need it spec'd or shipped?

Get a depot-direct quote in 24 hours — including delivery to your ZIP.

Mike R. ordered a 40ft High Cube → Dallas, TXLogistics Pro Inc. ordered 5× 20ft → Atlanta, GASarah K. ordered a One-Trip 20ft → Phoenix, AZCoastline Builders ordered 3× 40ft → Miami, FLJames T. ordered a Refurbished 40ft → Seattle, WAApex Storage LLC ordered 8× 40HC → Chicago, ILMaria P. ordered a Cargo Worthy 20ft → Denver, CONorthland Co. ordered 4× 20ft → Minneapolis, MNMike R. ordered a 40ft High Cube → Dallas, TXLogistics Pro Inc. ordered 5× 20ft → Atlanta, GASarah K. ordered a One-Trip 20ft → Phoenix, AZCoastline Builders ordered 3× 40ft → Miami, FLJames T. ordered a Refurbished 40ft → Seattle, WAApex Storage LLC ordered 8× 40HC → Chicago, ILMaria P. ordered a Cargo Worthy 20ft → Denver, CONorthland Co. ordered 4× 20ft → Minneapolis, MN
Get Free Quote →
